Create Distinct Separation Between Sections Of Cable

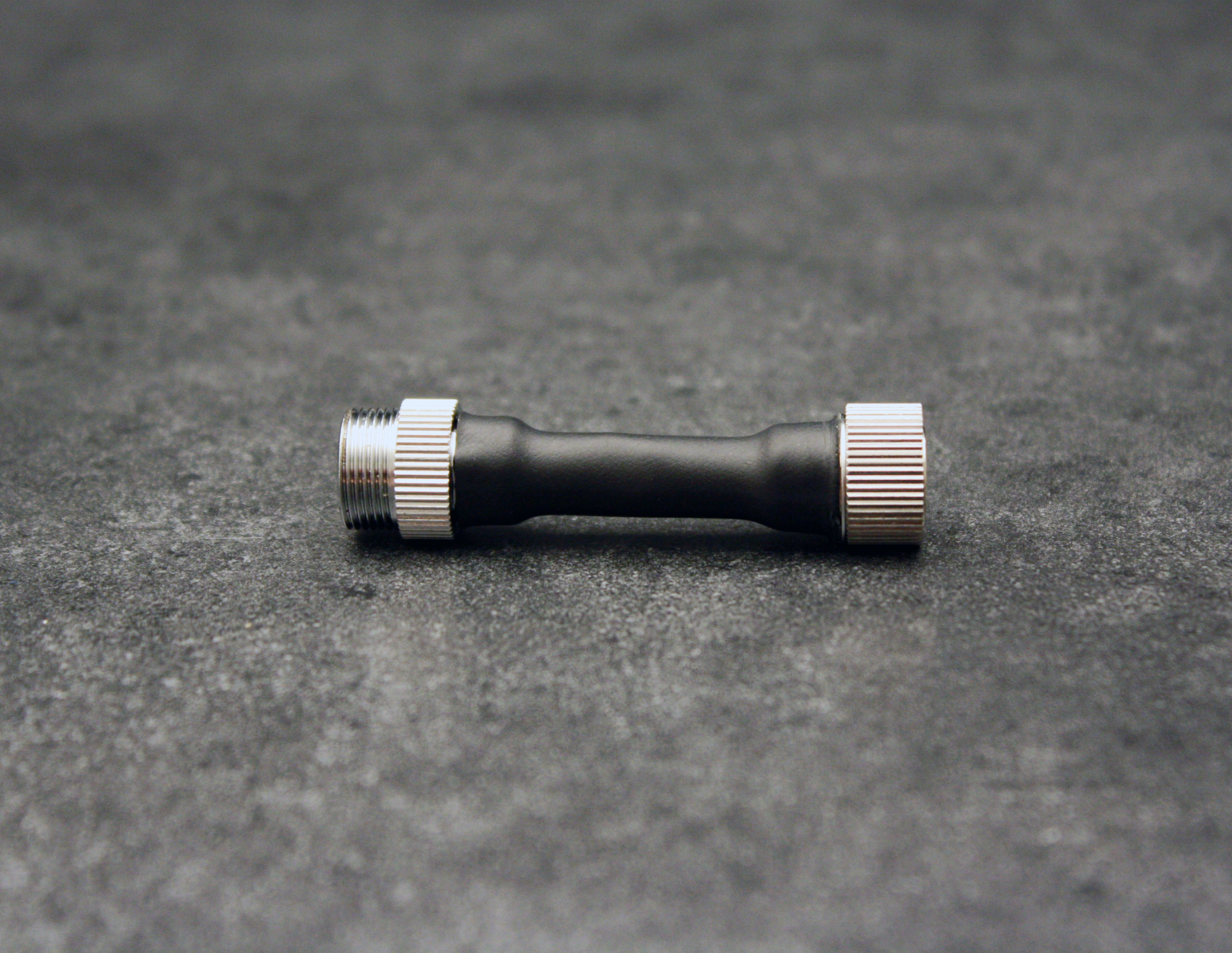

The weighted cable connector (WCCS-50) is used with a distance-read panel to simulate 50 feet (15.2m) of SeaHawk sensing cable.
It provides distinct separation between sections of sensing cable for enhanced leak location identification and is most commonly used between floors or rooms.
Since conductive fluid sensing cable and chemical sensing cable have different connectors, be sure to obtain the hardware that is compatible with your cable.
Conductive Fluid Sensing Cable Weighted Cable Connector
Connections: 22 AWG, 4 Conductors, AMP 4-pin circular receptacle
Operating Environment
- Temperature: 32° to 122°F (0° to 50°C)
- Humidity: 5% to 95% RH, non-condensing
- Altitude: 15,000ft (4,572m) max.
Storage Environment: -4° to 158°F (-20° to 70°C)
Dimensions: 2.5″L x 0.1.0″W (64mmL x 25mmW)
Weight: 0.6 oz. (17g)
Certifications: Plenum Rated; CE; ETL listed: conforms to UL STD 61010-1, EN STD 61010-1; RoHS compliant
Standards: NEC Article 725-CL2P, CMP, MPP
